Cone Crusher Spare Parts are critical machinery in various industries, including mining, construction, and aggregate production. They are primarily used for crushing hard materials, and their efficiency largely depends on the quality and condition of their spare parts. This article will explore the essential spare parts of cone crushers, their functions, and the importance of maintaining them for optimal performance.

1. Introduction toCone Crusher Spare Parts

Cone crushers operate on the principle of compression, where material is crushed between a moving cone and a stationary outer cone. The design allows for high reduction ratios and the ability to produce a uniform product size. However, the complexity of these machines means that their components undergo significant wear and tear, necessitating regular replacement and maintenance of spare parts.

2. Key Spare Parts of Cone Crusher Spare Parts

2.1 Mantle

The mantle is one of the most critical components of the cone crusher. It is the part that directly interacts with the material being crushed. As the mantle moves up and down, it crushes the material against the concave, reducing it to the desired size. Over time, the mantle wears down due to friction and impact, leading to reduced efficiency in the crushing process. Regular monitoring and timely replacement are essential to maintain crushing performance.

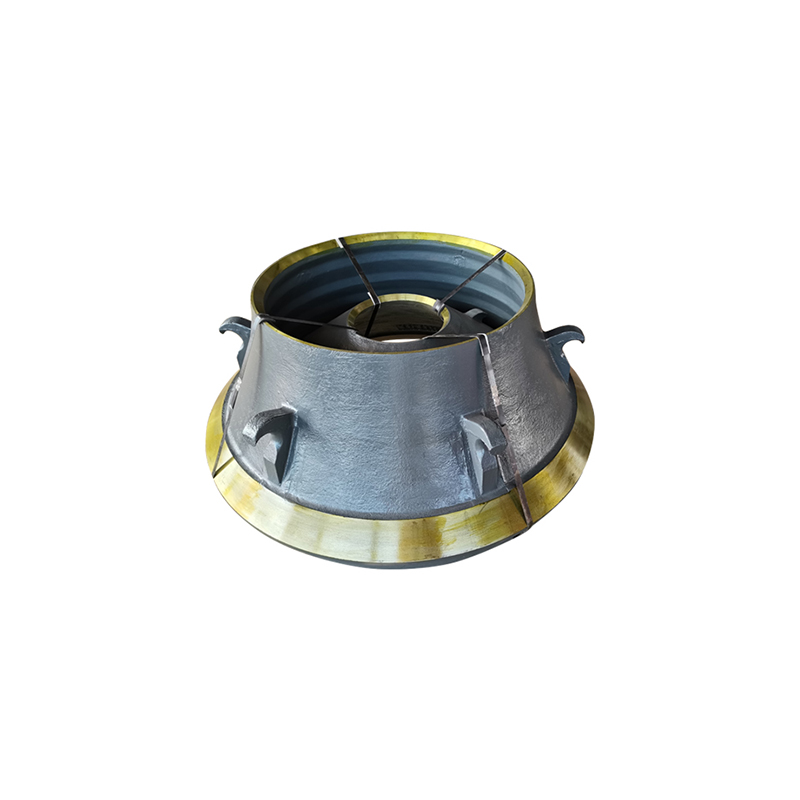

2.2 Bowl Liner

The bowl liner works in conjunction with the mantle to crush material. It is mounted on the top shell of the crusher and provides a surface against which the material is crushed. Like the mantle, the bowl liner experiences wear from the constant abrasion of material. Replacing the bowl liner when it shows signs of wear is crucial to avoid excessive wear on the mantle and other components.

2.3 Spider Cap

The spider cap sits atop the spider assembly and protects the top of the cone crusher from material ingress. It also helps to distribute the load to the spider arms. A damaged spider cap can lead to misalignment and increased wear on other components. Regular inspections can help identify any issues before they escalate.

2.4 Shaft Assembly

The shaft assembly is integral to the cone crusher's operation. It connects the cone to the drive mechanism and supports the mantle. The shaft must be robust enough to handle the forces generated during crushing, and any wear or damage can significantly affect performance. Ensuring that the shaft assembly is in good condition is vital for the crusher's longevity.

2.5 Eccentric Assembly

The eccentric assembly is responsible for the gyrating motion of the cone. It translates the rotational movement from the drive motor into the oscillating motion required for crushing. Any wear in the eccentric assembly can lead to inefficient crushing and increased power consumption. Regular lubrication and inspection are necessary to maintain its functionality.

2.6 Hydraulic System

Most modern cone crushers utilize a hydraulic system for adjusting the gap between the cone and the bowl liner, which controls the size of the output material. The hydraulic system also provides overload protection, helping to prevent damage during unexpected material blockages. Maintaining the hydraulic system, including hoses, pumps, and cylinders, is crucial for efficient operation.

2.7 Feed Plate

The feed plate is located at the top of the cone crusher and directs incoming material into the crushing chamber. A well-functioning feed plate ensures an even distribution of material, which is essential for optimal crushing performance. Damage or wear to the feed plate can lead to uneven feeding, resulting in inefficient operation.

2.8 Dust Seal

The dust seal prevents dust and debris from entering the internal components of the cone crusher. This is vital for maintaining the integrity of the lubrication system and preventing wear on the bearings and other components. Regularly checking the dust seal for wear and replacing it as needed can significantly extend the life of the crusher.

3. Importance of Quality Cone Crusher Spare Parts

Using high-quality spare parts is essential for maintaining the performance and longevity of cone crushers. Inferior parts may save money upfront but can lead to increased wear, reduced efficiency, and more frequent breakdowns. It is crucial to source spare parts from reputable manufacturers who adhere to strict quality standards.

4. Maintenance Practices for Cone Crusher Spare Parts

4.1 Regular Inspections

Scheduled inspections of cone crushers can help identify wear and tear on spare parts before they lead to severe issues. This proactive approach can save time and money by preventing unexpected breakdowns.

4.2 Lubrication

Proper lubrication is vital for the longevity of moving parts in a cone crusher. Regularly check and replace lubricants according to the manufacturer's recommendations to ensure smooth operation and reduce friction-related wear.

4.3 Monitoring Performance

Using monitoring systems to track the performance of the cone crusher can provide valuable insights into the condition of spare parts. Performance metrics such as power consumption, output size, and throughput can indicate when parts may need replacement.

Cone Crusher Spare Parts are invaluable in various industries, and their efficiency depends heavily on the condition of their spare parts. Understanding the essential components—such as the mantle, bowl liner, and hydraulic system—along with regular maintenance practices, can significantly enhance the performance and lifespan of these machines. Investing in high-quality spare parts and adhering to best maintenance practices will ensure that cone crushers operate at their best, ultimately leading to increased productivity and reduced operational costs. By prioritizing the health of these crucial components, businesses can optimize their crushing operations and maintain a competitive edge in the industry.
