Industry-specific attributes
| Type | Mantle and bowl liner |
| Machine Type | Crusher |
| Material | Steel |
| Processing Type | Casting |
| Use | Ore Mining |
Other attributes
| Warranty | 1 Year |
| Weight(KG) | 1000 |
| Place of Origin | Jiangsu,China |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Brand Name | Product Machinery |
| Product name | Bowl liner and mantle |
| Color | Customer Request |
| After-sales Service Provided | Video technical support |
| Size | Standrad Size |
| Certification | ISO 9001 |
| OEM | Acceptable |
| MOQ | 1 Piece |
| Advantage | Same as Original |
| Package | Standard packing |
| Delivery time | 30-45 days |
Product Description
| Product name | Bowl liner |
| Color | Customer Request |
| Size | Standard Size |
| Certificatiom | ISO 9001 |
| Package | Standard Packing |
| Delivery Time | 30-45days |

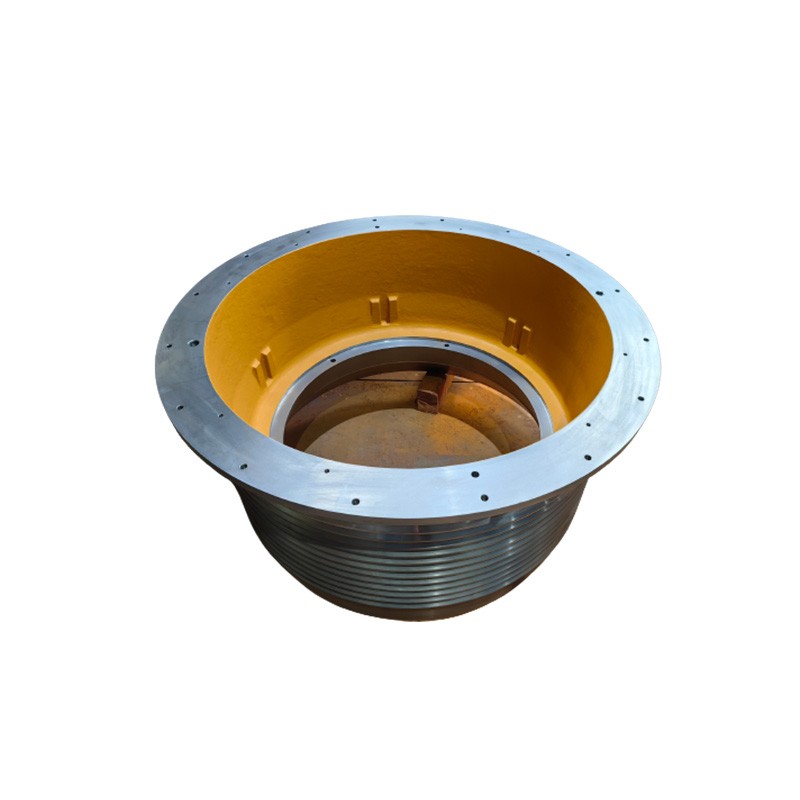

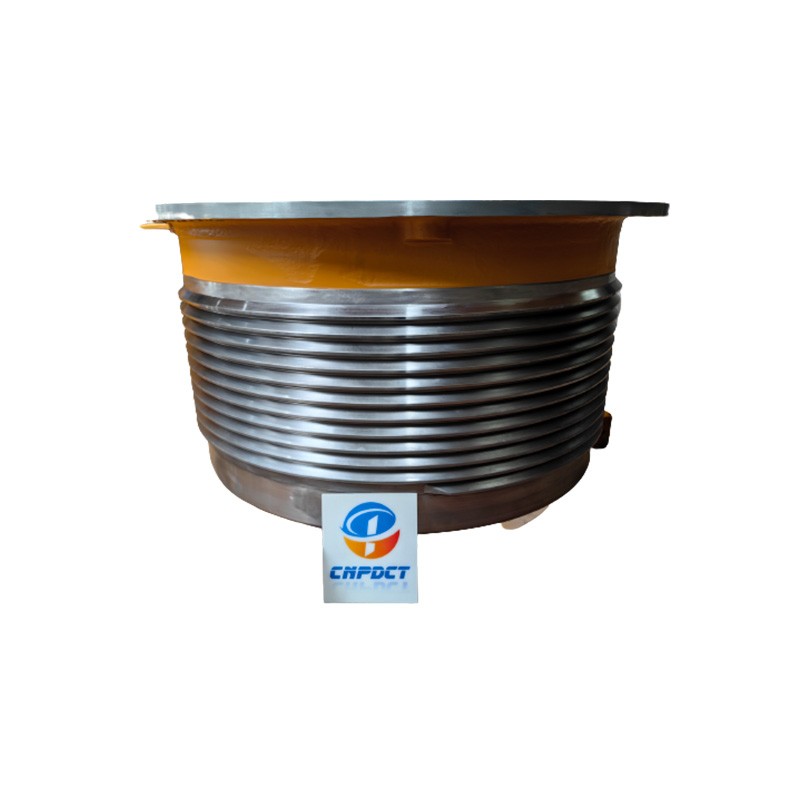

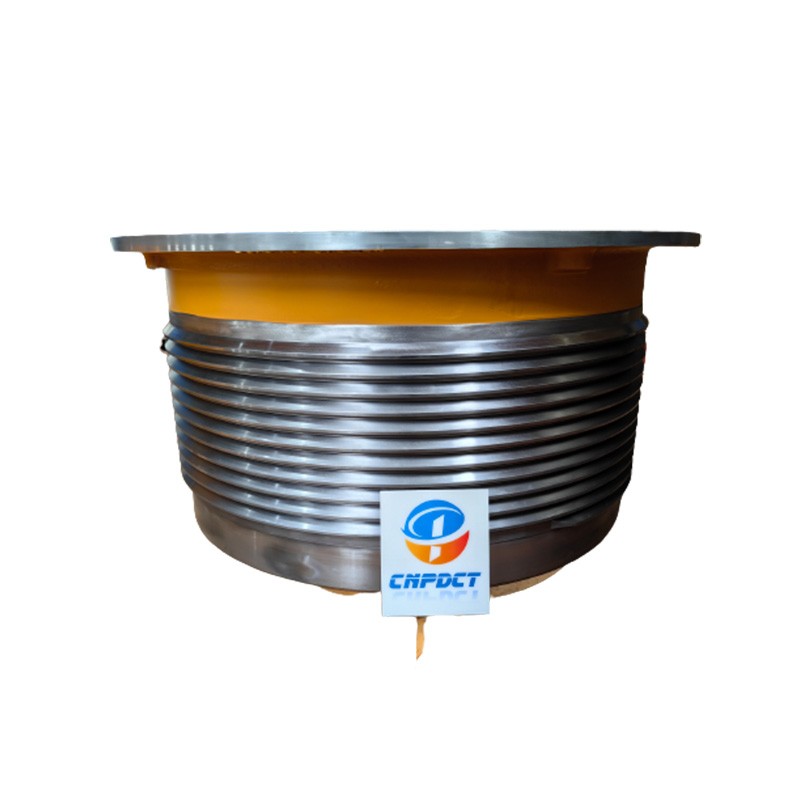

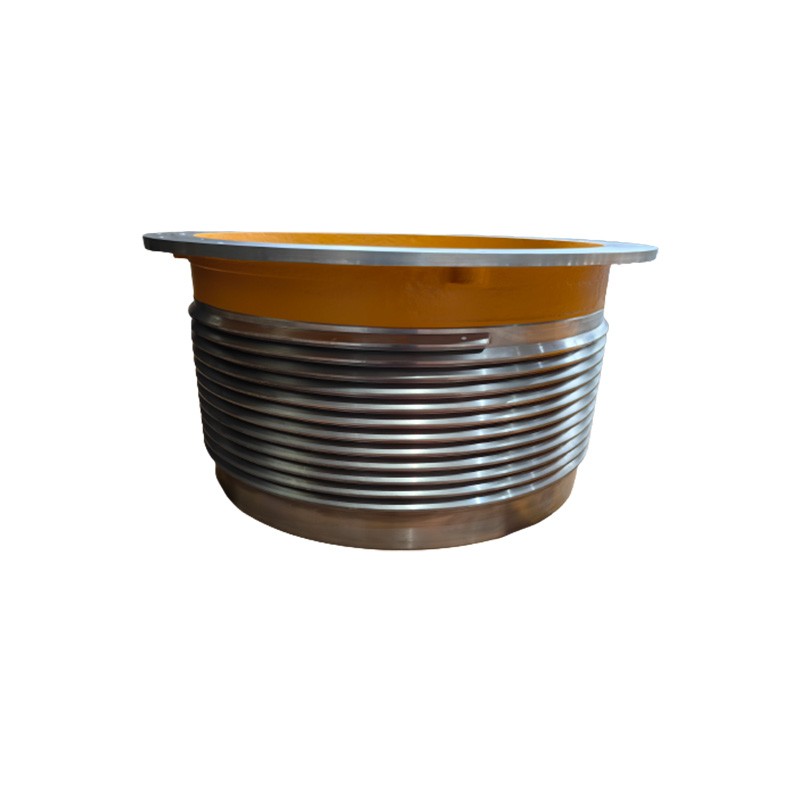

Details Images
The bowl assembly in a cone crusher is a key component that forms the crushing chamber where rocks and minerals are crushed by the mantle and concave. Here are some important points about the cone crusher bowl assembly:
Crushing Chamber: The cone crusher bowl assembly serves as the fixed portion of the crushing chamber in the cone crusher. It provides a cavity where the material to be crushed is fed and processed by the rotating mantle and stationary concave.
Mantle and Concave Support: The bowl assembly supports the mantle and concave, which are critical components involved in the crushing process. Proper alignment and secure attachment of the mantle and concave within the bowl assembly are essential for efficient crushing operations.
Liner Protection: The cone crusher bowl assembly is often lined with wear-resistant liners to protect the bowl from abrasion and wear caused by the crushing process. These liners help extend the lifespan of the bowl assembly and maintain its integrity.
Adjustment Mechanism: Some cone crushers feature an adjustment mechanism in the bowl assembly that allows for the adjustment of the gap between the mantle and concave. This gap adjustment controls the size of the crushed material produced by the crusher.
Retention Mechanism: The cone crusher bowl assembly typically includes a retention mechanism to secure the mantle and prevent it from rotating or moving during operation. This mechanism ensures the proper functioning of the crusher and the safety of personnel.
Safety Features: Safety considerations may include features such as protective guards and covers to ensure the safety of personnel working on or around the crusher. Proper guarding helps prevent accidents and promotes a safe working environment.

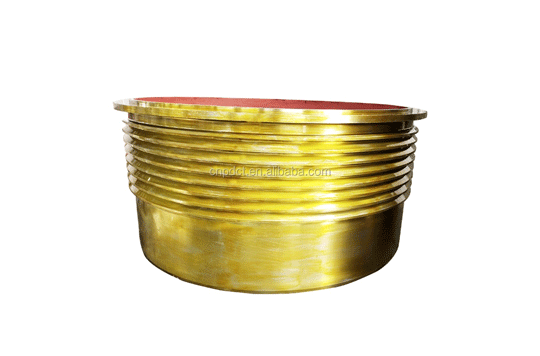

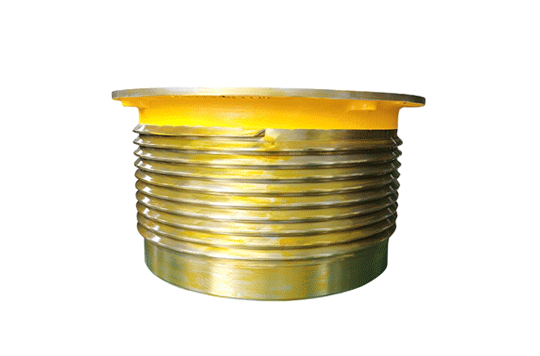

Cone Crusher Bowl Features
